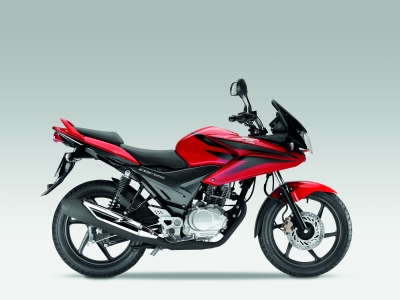

Honda - CBF 125 MB 11

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
125
CBF 125 MB Parts and accessories

Service

Chain Freeplay mm:
15 - 25
Engine Oil quantity (litres):
1.1
Fork oil grade:
SAE 10
Front Fork Oil cc (left leg):
146
Front Fork Oil cc (right leg):
146
Idle Speed (rpm):
1500
Tyre Pressure Back Bar / psi:
29 psi
Tyre Pressure Front Bar / psi:
25 psi
Valve Clearance Cold - Exhaust:
0.12 mm
Valve Clearance Cold - Inlet:
0.08 mm

Brakes

Front:
Disc
Rear:
Drum
Front Disc Size:
240mm
Front-Pistons-per-caliper:
2
Rear Drum Size:
130mm

Dimensions

Fuel Capacity:
13 Litres
Ground Clearance:
173mm
Height:
1,110mm
Length:
1,955mm
Seat Height:
792mm
Wheelbase:
1,270mm
Width:
760mm

Electrics

Voltage:
12v
Spark Plugs:
NGK CPR7EA


Engine

Type:
Air Cooled SOHC Single
Bore x Stroke:
52.4 x 57.8mm
Displacement:
124.7cm3
No. of Valves:
2
Starting:
Electric

Transmission

Chain Number of Links:
118
Chain type:
428
Clutch Type:
Wet Multiplate
Final Drive:
Chain and Sprockets
Transmission:
5 Speed

Misc.

Frame:
Steel diamond
Motorcycle Style:
Roadster
Place of Manufacture:
India

Suspension

Front:
30mm telescopic fork
Rear:
Twin shock 87mm

Tyres

Front:
80/100-17M/C (46P)
Rear:
100/90-17M/C (55P)
