Spec Sheet

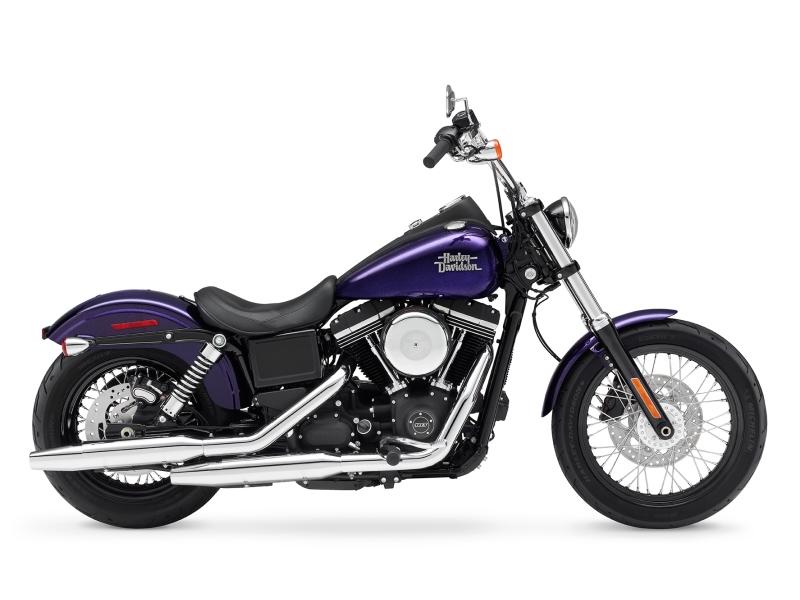

The information below is specific to the Harley Davidson - FXDB Street Bob ABS 14, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1690
Brakes
Front:
Disc
Rear:
Disc
Front Disc Size:
300 mm
Front-Pistons-per-caliper:
4
Rear Disc Size:
292 mm
Rear-Pistons-per-caliper:
4
Dimensions
Dry Weight:
290
Fuel Capacity:
17.8 litres
Ground Clearance:
142 mm
Height:
1285 mm
Length:
2335 mm
Rake:
29°
Seat Height:
675 mm
Trail:
119 mm
Wheelbase:
1631 mm
Width:
810 mm
Electrics
Voltage:
12v
Battery:
19 A/H
Ignition:
Electronic
Spark Plugs (Iridium):
NGK BPR5EIX
Engine
Type:
Air Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
95.3 x 111.3 mm
Carburation:
40 mm Keihin CV
Compression Ratio:
9.2:1
Displacement:
1584 cc
No. of Valves:
4 - 2 valve heads
Starting:
ElectriC
Transmission
Final Drive:
Belt
Gear Ratio 1st:
9.311
Gear Ratio 2nd:
6.454
Gear Ratio 3rd:
4.793
Gear Ratio 4th:
3.882
Gear Ratio 5th:
3.307
Gear Ratio 6th:
2.79
Transmission:
6-speed
Misc.
Frame:
Steel Box Section - Dyna Glide chassis with twin downtube
Motorcycle Style:
Custom cruiser
Power
Max Torque:
92 lbft @ 3,000 rpm
Suspension
Front:
Air Assisted Forks
Rear:
Twin Shocks
Tyres
Front:
100/90-19 57H
Rear:
160/70B17 73V
