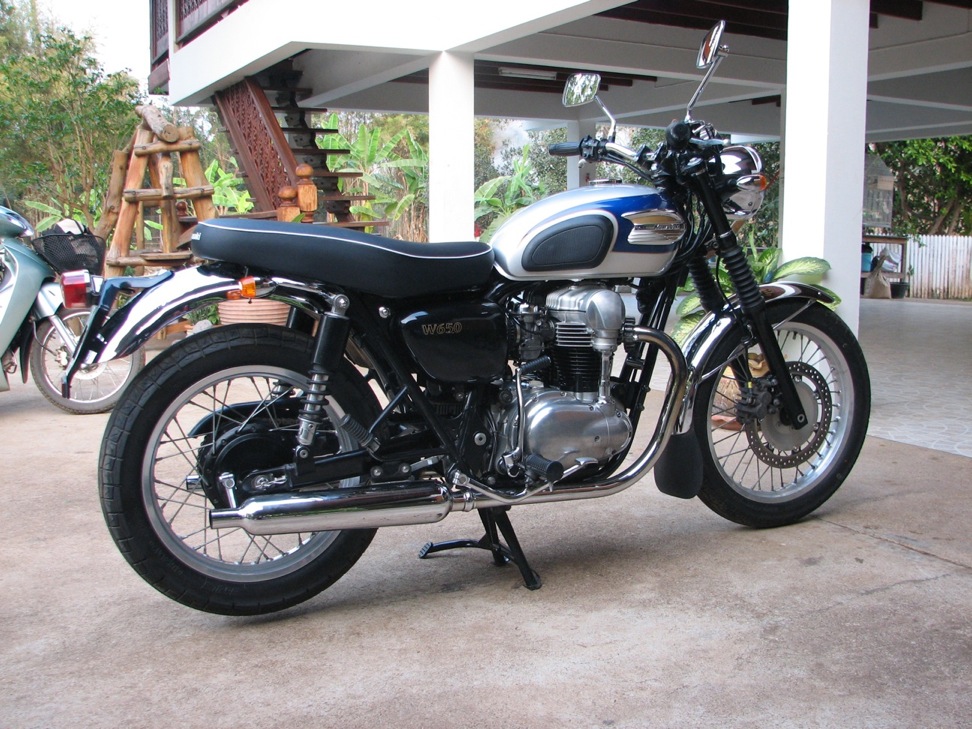

Kawasaki - W 650 (EJ 650 C3/C4/C5/C6/C7)) Low Bars 01-05

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
650
W 650 (EJ 650 C3/C4/C5/C6/C7)) Low Bars Parts and accessories

Service

Chain Freeplay mm:
25 - 40
Engine Oil Classification API:
SE or SF or SG
Engine Oil Grade SAE:
20W/50 or 10W/40
Engine Oil quantity (litres):
2.5
Engine Oil quantity with filter (litres):
2.8
Idle Speed (rpm):
900 +- 50
Spark Plugs Gap (mm):
0.7-0.8
Tyre Pressure Back Bar / psi:
2.25 / 32
Tyre Pressure Back - Pillion Bar / psi:
2.5 / 36
Tyre Pressure Front Bar / psi:
2.0 / 28
Valve Clearance Cold - Exhaust:
0.14-0.19 mm
Valve Clearance Cold - Inlet:
0.08-0.13 mm

Brakes

Front:
Disc
Rear:
Drum
Front Disc Size:
300mm

Dimensions

Dry Weight:
194 kg
Fuel Capacity:
15 litres
Ground Clearance:
125 mm
Height:
1140 mm
Length:
2175 mm
Wheelbase:
1455 mm
Width:
980 mm

Electrics

Voltage:
12v
Battery:
YTX14BS
Bulb-Headlight:
60/55 watt
Ignition:
Transistorised Battery and Coil
Spark Plugs:
NGK CR8E


Engine

Type:
Air Cooled 4 Stroke SOHC Parallel Twin
Bore x Stroke:
72 X 83 mm
Carburation:
Keihin CVK34 x 2
Compression Ratio:
8.6:1
Displacement:
675 cc
Lubrication System:
Wet Sump Forced lubrication
No. of Valves:
8
Starting:
Kick and Electric

Transmission

Chain Number of Links:
104
Chain type:
525
Clutch Type:
Wet Multiplate
Final Drive:
Chain and Sprockets
Sprocket front:
15
Sprocket rear:
39
Transmission:
6 Speed

Misc.

Frame:
Double cradle, high tensile steel
Motorcycle Style:
Classic Twin

Suspension

Front:
39 mm Telescopic Forks
Rear:
twin rear shock absorbers with adjustable preload

Tyres

Front:
100/90-19 57H
Rear:
130/80-18 66H
