Buell - X1 1200 Lightning 00-02

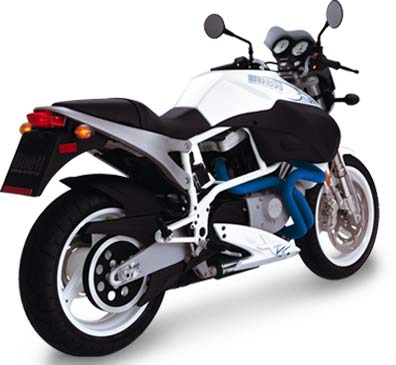

X1 1200 Lightning image
Do you have any images of this bike? Upload them here
Edit These Specs
List Buell Models
List Makes
Contact Admin
Bike Description and General information
Service Infromation
Front Fork Oil cc (right leg) : 80
Front Fork Oil cc (right leg) : 110
Front Fork Oil cc (left leg) : 80
Front Fork Oil cc (left leg) : 110
Fork oil grade : SAE 5
Valve Clearance Cold - Inlet : Hydraulic
Valve Clearance Cold - Exhaust : Hydraulic
Tyre Pressure Front Bar / psi : 32
Tyre Pressure Back Bar / psi : 36
Tyre Pressure Front - Pillion Bar / psi : 36
Tyre Pressure Back - Pillion Bar / psi : 38
Gearbox Oil Litres : 0.95
Engine Oil Grade SAE : 20w/50
Engine Oil Classification API : CG
Engine Oil quantity with filter (litres) : 2.4
Engine Oil quantity with filter (litres) : 1.9
Idle Speed (rpm) : 950 - 1050
Idle Speed (rpm) : 1000 - 1050
Spark Plugs Gap (mm) : 0.8
Float Height : 10.5 -11.5

Buell X1 1200 Lightning 00-02 Parts & Accessories
Brakes
Front Disc
Rear Disc
Dimensions
Wet Weight 200 kg
Electrics
Voltage 12v
Ignition Map-h
Spark Plugs NGK DCPR7E
Battery YTX20L-BS
Engine
Type Air Cooled 4 Stroke V Twin
Bore x Stroke 88.8 x 96.8 mm
Displacement 1203 cc
Carburation Buell DDFI
Carburation Main Jet 195
Carburation Idle Jet 42
Fuel Minimum Octane Rating 91
Transmission
Sprocket front 27
Sprocket rear 61
Misc.
Fuel Control Injection
Frame Tube
Place of Manufacture USA
Power
Max Power Output 74KW(101HP)@6200
Tyres
Front 120/70 ZR17
Rear 170/60 ZR17
