Harley Davidson - XL 883 Sportster Custom 05

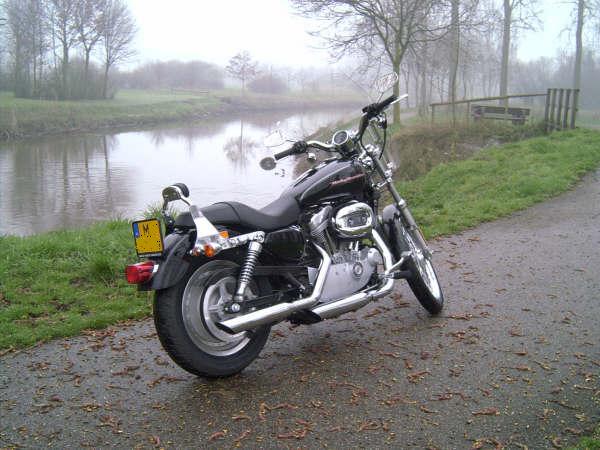

XL 883 Sportster Custom image
Do you have any images of this bike? Upload them here
Edit These Specs
List Harley Davidson Models
List Makes
Contact Admin
Bike Description and General information
Service Infromation
Front Fork Oil cc (right leg) : Harley E 266cm
Front Fork Oil cc (left leg) : Harley E 266cm
Gearbox Oil Litres : 1.2
Engine Oil Grade SAE : 20w/50
Engine Oil quantity with filter (litres) : 2.8
Idle Speed (rpm) : 950-1000
Spark Plugs Gap (mm) : 0.9mm

Harley Davidson XL 883 Sportster Custom 05 Parts & Accessories
Brakes
Front Drum
Rear Disc
Dimensions
Wheelbase 1524mm
Dry Weight 214kg
Electrics
Spark Plugs NGK DPR7EA-9
Engine
Type Air Cooled 4 Stroke OHV V Twin
Bore x Stroke 76.2 x 96.8mm
Compression Ratio 8:3
Displacement 883 cc
No. of Valves 4
Starting Electric
Transmission
Transmission Five Speed Chain Drive
Misc.
Exhaust staggered shorty dual exhausts
