Spec Sheet
The information below is specific to the Kawasaki - 900 GPZ 900 R A3-A6 (ZX900A), showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

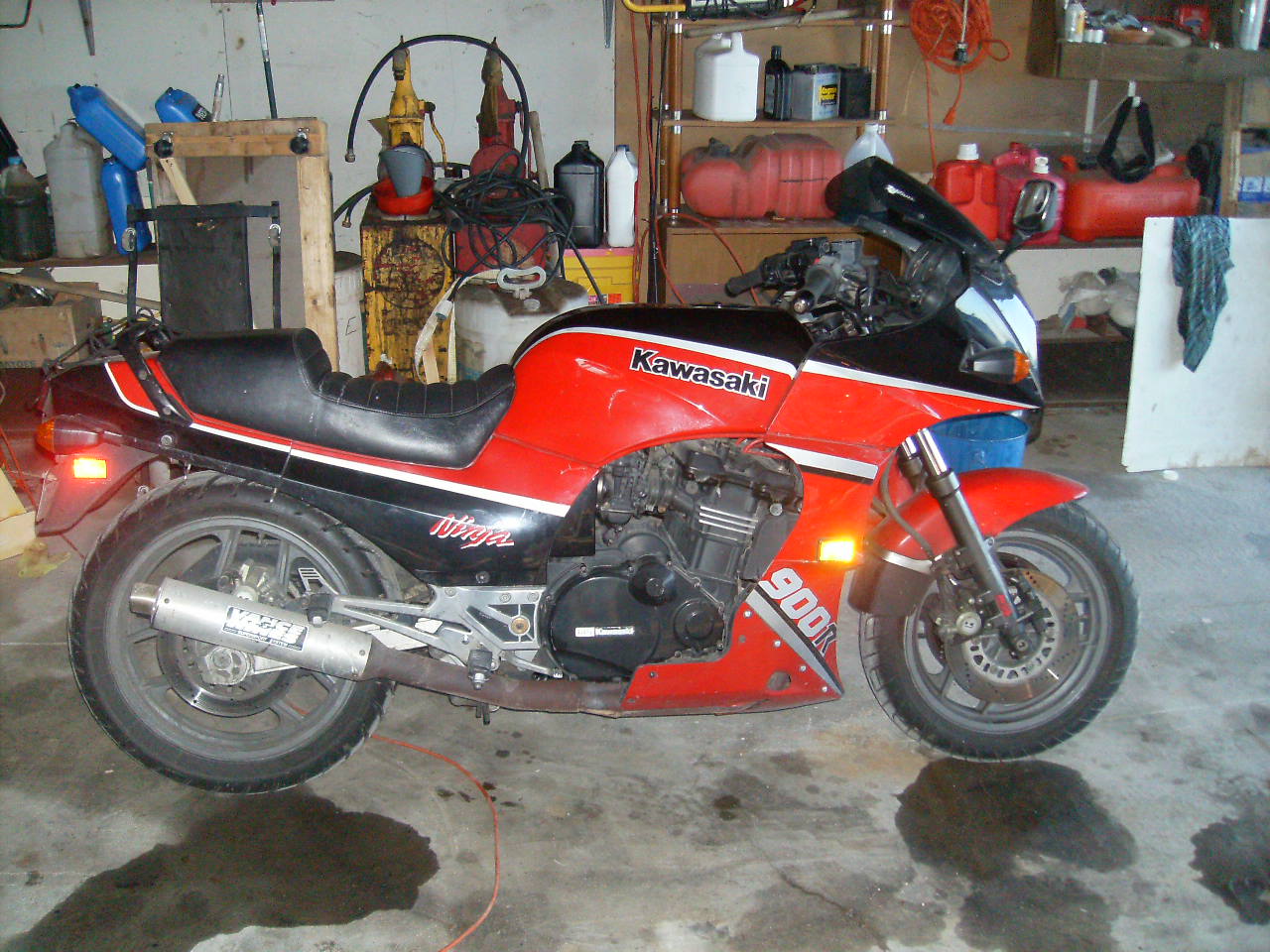

Back.Kawasaki - GPZ 900 R A3-A6 (ZX900A) 85-89
Bike Info
CC:
900
Service
Chain Freeplay mm:
35-40
Engine Oil Classification API:
SE / SF
Engine Oil Grade SAE:
10W/40
Engine Oil quantity (litres):
4 (drain FR&RR drain plugs
Engine Oil quantity with filter (litres):
3
Fork oil grade:
10W/20
Front Fork Oil cc (left leg):
318
Front Fork Oil cc (right leg):
318
Spark Plugs Gap (mm):
0.6-0.7
Tyre Pressure Back Bar / psi:
2.5 - 36
Tyre Pressure Front Bar / psi:
2.2 - 32
Valve Clearance Cold - Exhaust:
0.18-0.23 mm
Valve Clearance Cold - Inlet:
0.13-0.18 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Dimensions
Fuel Capacity:
22L
Reserve Fuel Capacity:
4L
Electrics
Voltage:
12v
Ignition:
TCBI
Spark Plugs:
NGK DR8ES
_85-89/GPZ_900_R_A3-A6_(ZX900A)_85-89_2.jpg)
_85-89/GPZ_900_R_A3-A6_(ZX900A)_85-89_1.jpg)
Engine
Type:
Liquid Cooled 4 Stroke DOHC Straight Four
Bore x Stroke:
72.5 x 55 mm
Carburation Main Jet:
135
Compression Ratio:
11.0:1
Displacement:
908 cc
Firing Order:
1-2-4-3
No. of Valves:
16
Transmission
Chain Number of Links:
112
Sprocket front:
15
Sprocket rear:
49
Misc.
Motorcycle Style:
Sports
Tyres
Front:
120/80-V16 Tubeless
Rear:
130/80-V18 Tubeless
