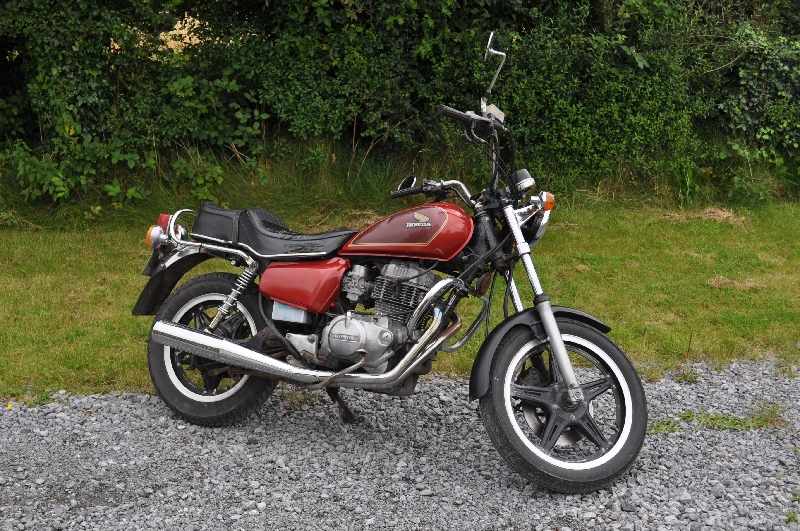

CM 250 TB MC05 249cc image
Do you have any images of this bike? Upload them here
Edit These Specs
List Honda Models
List Makes
Contact Admin
Bike Description and General information

Service Infromation
Valve Clearance Cold - Inlet : 0.12mm
Valve Clearance Cold - Exhaust : 0.16mm

Brakes
Front Disc
Rear Drum
Electrics
Voltage 12v
Spark Plugs NGK DR8ES
Engine
Type Air Cooled 4 Stroke SOHC Parallel Twin
Bore x Stroke 62 x 41.4 mm
Compression Ratio 9.4 : 1
Displacement 249 cc
No. of Valves 3 valves per cylinder
Transmission
Sprocket front 16
Sprocket rear 41
Chain Number of Links 106
Misc.
Motorcycle Style CRUISER
Tyres
Front 325-18 Tubed
Rear 110/90-16 Tubed
